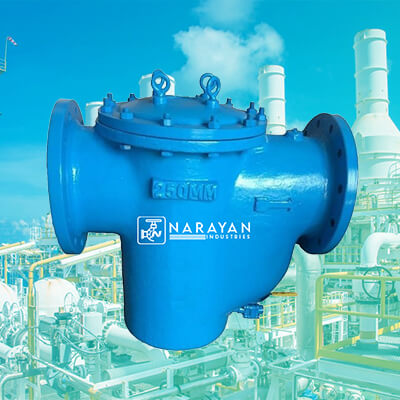

Fabricated POT Type Strainer
| P. No. | Qty. | Parts List | Material |
|---|---|---|---|
| 1 | 1 | Inlet | Carbon Steel is 2062 |
| 2 | 1 | Body | Carbon Steel is 2062 |
| 3 | 1 | Outlet | Carbon Steel is 2062 |
| 4 | 1 | Screen | SS 304 |
| 5 | 2 | Side Flanges | Carbon Steel is 2062 |
| 6 | 2 | Cover | Carbon Steel is 2062 |
| 7 | 1 | End Plate | Carbon Steel is 2062 |
| 8 | 1 | Gasket | Fibre |
| 9 | Req. | Cover Studs & Nuts | Carbon Steel is 2062 |
| 10 | 1 | Drain Plug | Carbon Steel |
| 11 | 1 | Eye Hook | ASTM A 307 Gr. B |
Design Features :-
- Design Standards
- F/ 014
- Size Range :
- 1" - 48"
- DN25 - DN 1200
- Pressure Rating :
- ANSI 150
- Design Configuration :
- Bolted Cover
- Available Mesh from 2 to 500
- Finer on Demand
- POT Type Construction
- Drain Plug on Demand
Technical Specification
- Manufacturing Std.
- F / 014
- End Connection
- Flanged Ends to ANSI B 16.5 RF 150#
- Inspection And Testing Std.
- BS 6755 (Part-1)
Available Options
| Structure | End Connection | Flange End as per ASA 150# / 300# / 600# |
|---|---|---|
| Material | Body | IS 2062 / BS 2762 / BS 4360 / ASTM A 106 / SS 304, 316 |
| Trims | SS 304, SS 316, ETC |
Test Pressure
| Testing | Body |
| Hydraulic | 16Kg/Cm2 |
Product Dimensions (in mm)
| Size | 25 | 40 | 50 | 65 | 80 | 100 | 125 | 150 | 200 | 250 | 300 | 350 | 400 | 450 | 500 | 600 |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| L Face to Face - RF | 250 | 310 | 310 | 310 | 350 | 380 | 450 | 450 | 550 | 630 | 700 | 800 | 900 | 1000 | 1100 | 1300 |
| ØD | 110 | 125 | 150 | 180 | 190 | 230 | 255 | 280 | 345 | 405 | 485 | 535 | 595 | 635 | 700 | 815 |
| ØJ | 15.9 | 15.9 | 19.05 | 19.05 | 19.05 | 19.05 | 22.2 | 22.2 | 22.2 | 25.4 | 25.4 | 28.6 | 28.6 | 31.8 | 31.8 | 34.9 |
| N | 4 | 4 | 4 | 4 | 4 | 8 | 8 | 8 | 8 | 12 | 12 | 12 | 16 | 16 | 20 | 20 |
| K : PCD | 79.4 | 98.4 | 120.7 | 139.7 | 152.4 | 190.5 | 215.9 | 241.3 | 298.5 | 362 | 431.8 | 476.3 | 539.8 | 577.9 | 635 | 749.3 |
